Bulkhead Hermetically Sealed BNC
Female to BNC Female Adapter

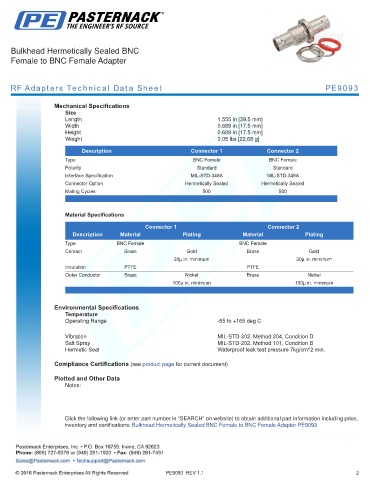

RF Adapters Technical Data Sheet PE9093

Mechanical Specifications
Size
Length 1.555 in [39.5 mm]
Width 0.689 in [17.5 mm]
Height 0.689 in [17.5 mm]
Weight 0.05 lbs [22.68 g]
.
Description Connector 1 Connector 2
Type BNC Female BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
Connector Option Hermetically Sealed Hermetically Sealed
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female BNC Female
Contact Brass Gold Brass Gold
30µ in. minimum 30µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202. Method 204, Condition D
Salt Spray MIL-STD-202. Method 101, Condition B
Hermetic Seal Waterproof leak test pressure 7kg/cm^2 min.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed BNC Female to BNC Female Adapter PE9093
