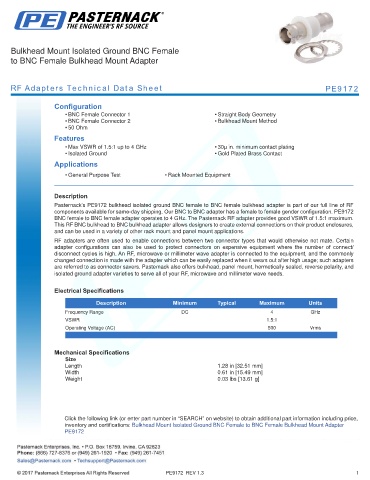

Bulkhead Mount Isolated Ground BNC Female
to BNC Female Bulkhead Mount Adapter

RF Adapters Technical Data Sheet PE9172

Configuration
• BNC Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.5:1 up to 4 GHz • 30µ in. minimum contact plating
• Isolated Ground • Gold Plated Brass Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9172 bulkhead isolated ground BNC female to BNC female bulkhead adapter is part of our full line of RF
components available for same-day shipping. Our BNC to BNC adapter has a female to female gender configuration. PE9172
BNC female to BNC female adapter operates to 4 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum.
This RF BNC bulkhead to BNC bulkhead adapter allows designers to create external connections on their product enclosures,
and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.61 in [15.49 mm]
Weight 0.03 lbs [13.61 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount Isolated Ground BNC Female to BNC Female Bulkhead Mount Adapter
PE9172

PE9172 REV 1.3 1
