Bulkhead Mount Isolated Ground BNC Female
to BNC Female Bulkhead Mount Adapter

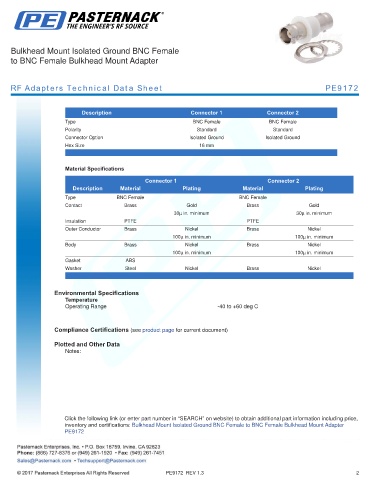

RF Adapters Technical Data Sheet PE9172

.
Description Connector 1 Connector 2
Type BNC Female BNC Female
Polarity Standard Standard
Connector Option Isolated Ground Isolated Ground
Hex Size 16 mm
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female BNC Female
Contact Brass Gold Brass Gold
30µ in. minimum 30µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
Body Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
Gasket ABS
Washer Steel Nickel Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount Isolated Ground BNC Female to BNC Female Bulkhead Mount Adapter
PE9172
