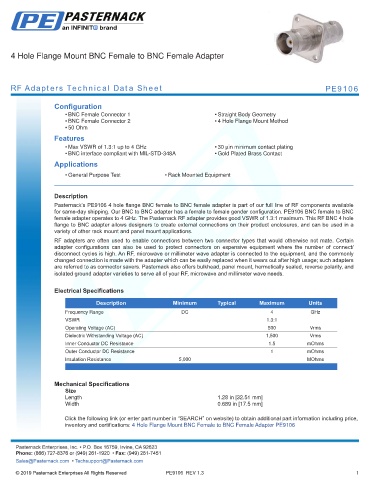

4 Hole Flange Mount BNC Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9106

Configuration
• BNC Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • 4 Hole Flange Mount Method
• 50 Ohm
Features
• Max VSWR of 1.3:1 up to 4 GHz • 30 µin minimum contact plating
• BNC interface compliant with MIL-STD-348A • Gold Plated Brass Contact
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9106 4 hole flange BNC female to BNC female adapter is part of our full line of RF components available
for same-day shipping. Our BNC to BNC adapter has a female to female gender configuration. PE9106 BNC female to BNC
female adapter operates to 4 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF BNC 4 hole
flange to BNC adapter allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
. .

Mechanical Specifications
Size
Length 1.28 in [32.51 mm]
Width 0.689 in [17.5 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange Mount BNC Female to BNC Female Adapter PE9106
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
