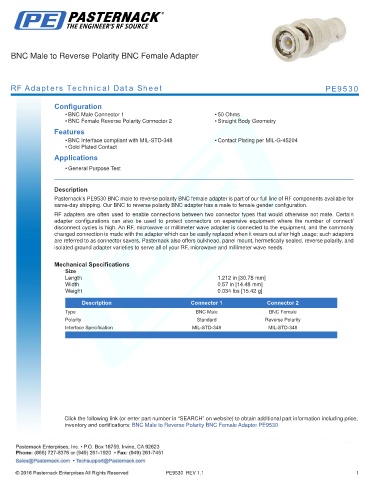

BNC Male to Reverse Polarity BNC Female Adapter

RF Adapters Technical Data Sheet PE9530

Configuration
• BNC Male Connector 1 • 50 Ohms
• BNC Female Reverse Polarity Connector 2 • Straight Body Geometry
Features
• BNC Interface compliant with MIL-STD-348 • Contact Plating per MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9530 BNC male to reverse polarity BNC female adapter is part of our full line of RF components available for
same-day shipping. Our BNC to reverse polarity BNC adapter has a male to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.212 in [30.78 mm]
Width 0.57 in [14.48 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type BNC Male BNC Female
Polarity Standard Reverse Polarity
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to Reverse Polarity BNC Female Adapter PE9530

PE9530 REV 1.1 1
