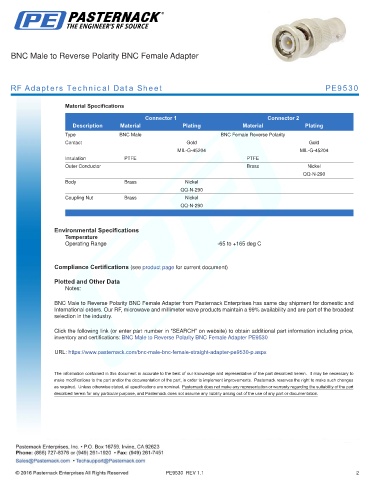

BNC Male to Reverse Polarity BNC Female Adapter

RF Adapters Technical Data Sheet PE9530

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male BNC Female Reverse Polarity
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

BNC Male to Reverse Polarity BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to Reverse Polarity BNC Female Adapter PE9530

URL: https://www.pasternack.com/bnc-male-bnc-female-straight-adapter-pe9530-p.aspx

PE9530 REV 1.1 2
