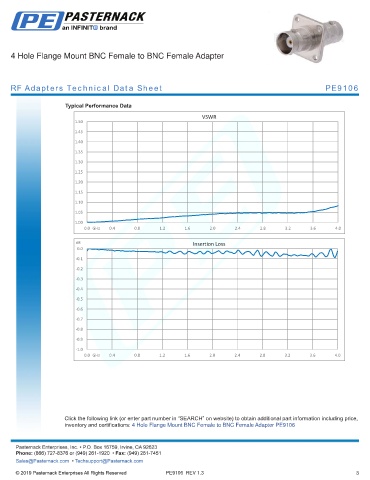

4 Hole Flange Mount BNC Female to BNC Female Adapter

RF Adapters Technical Data Sheet PE9106

Typical Performance Data
VSWR
1.50
1.45

1.40
1.35
1.30
1.25
1.20
1.15
1.10
1.05
1.00
0.0 GHz 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0

dB Insertion Loss
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9

-1.0
0.0 GHz 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6 4.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 4 Hole Flange Mount BNC Female to BNC Female Adapter PE9106
-
