Bulkhead Hermetically Sealed BNC
Female to BNC Female Adapter

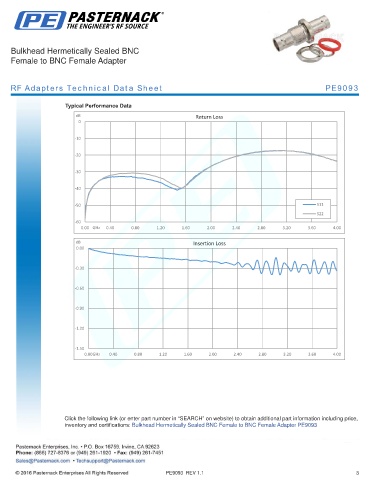

RF Adapters Technical Data Sheet PE9093
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50 S11
S22
-60
0.00 GHz 0.40 0.80 1.20 1.60 2.00 2.40 2.80 3.20 3.60 4.00
dB Insertion Loss
0.00
-0.30
-0.60
-0.90
-1.20
-1.50
0.00GHz 0.40 0.80 1.20 1.60 2.00 2.40 2.80 3.20 3.60 4.00
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed BNC Female to BNC Female Adapter PE9093
PE9093 REV 1.1 3
