Bulkhead Hermetically Sealed BNC
Female to BNC Female Adapter

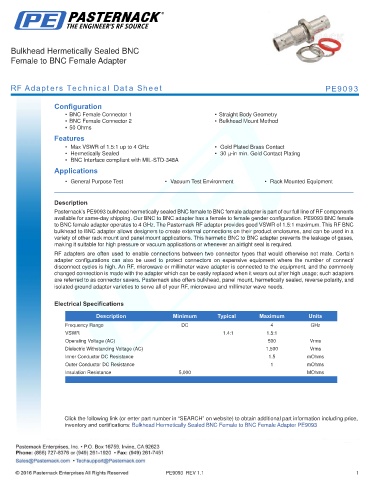

RF Adapters Technical Data Sheet PE9093

Configuration
• BNC Female Connector 1 • Straight Body Geometry
• BNC Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Max VSWR of 1.5:1 up to 4 GHz • Gold Plated Brass Contact
• Hermetically Sealed • 30 µ-in min. Gold Contact Plating
• BNC Interface compliant with MIL-STD-348A
Applications

• General Purpose Test • Vacuum Test Environment • Rack Mounted Equipment
.
Description
Pasternack’s PE9093 bulkhead hermetically sealed BNC female to BNC female adapter is part of our full line of RF components
available for same-day shipping. Our BNC to BNC adapter has a female to female gender configuration. PE9093 BNC female
to BNC female adapter operates to 4 GHz. The Pasternack RF adapter provides good VSWR of 1.5:1 maximum. This RF BNC
bulkhead to BNC adapter allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications. This hermetic BNC to BNC adapter prevents the leakage of gases,
making it suitable for high pressure or vacuum applications or whenever an airtight seal is required.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.4:1 1.5:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Inner Conductor DC Resistance 1.5 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Hermetically Sealed BNC Female to BNC Female Adapter PE9093

PE9093 REV 1.1 1
