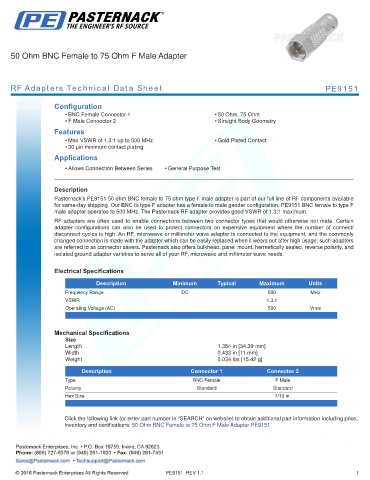

50 Ohm BNC Female to 75 Ohm F Male Adapter

RF Adapters Technical Data Sheet PE9151

Configuration
• BNC Female Connector 1 • 50 Ohm, 75 Ohm
• F Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 500 MHz • Gold Plated Contact
• 30 µin minimum contact plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9151 50 ohm BNC female to 75 ohm type F male adapter is part of our full line of RF components available
for same-day shipping. Our BNC to type F adapter has a female to male gender configuration. PE9151 BNC female to type F
male adapter operates to 500 MHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 500 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
. .

Mechanical Specifications
Size
Length 1.354 in [34.39 mm]
Width 0.433 in [11 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type BNC Female F Male
Polarity Standard Standard
Hex Size 7/16 in.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Female to 75 Ohm F Male Adapter PE9151

PE9151 REV 1.1 1
