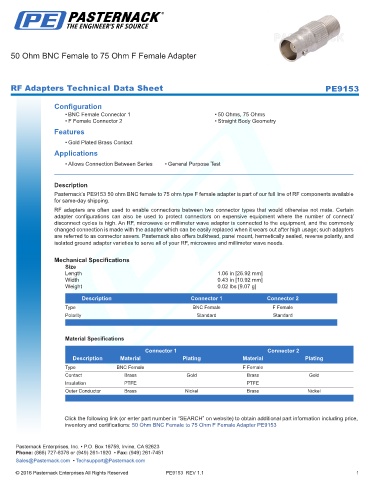

50 Ohm BNC Female to 75 Ohm F Female Adapter

RF Adapters Technical Data Sheet PE9153

Configuration
• BNC Female Connector 1 • 50 Ohms, 75 Ohms
• F Female Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9153 50 ohm BNC female to 75 ohm type F female adapter is part of our full line of RF components available
for same-day shipping.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.06 in [26.92 mm]
Width 0.43 in [10.92 mm]
Weight 0.02 lbs [9.07 g]
.
Description Connector 1 Connector 2
Type BNC Female F Female
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female F Female
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Female to 75 Ohm F Female Adapter PE9153

PE9153 REV 1.1 1
