50 Ohm BNC Female to 75 Ohm RCA Plug Adapter

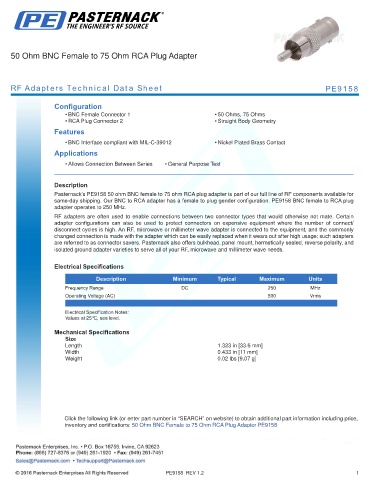

RF Adapters Technical Data Sheet PE9158

Configuration
• BNC Female Connector 1 • 50 Ohms, 75 Ohms
• RCA Plug Connector 2 • Straight Body Geometry
Features

• BNC Interface compliant with MIL-C-39012 • Nickel Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9158 50 ohm BNC female to 75 ohm RCA plug adapter is part of our full line of RF components available for
same-day shipping. Our BNC to RCA adapter has a female to plug gender configuration. PE9158 BNC female to RCA plug
adapter operates to 250 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 250 MHz
Operating Voltage (AC) 500 Vrms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.323 in [33.6 mm]
Width 0.433 in [11 mm]
Weight 0.02 lbs [9.07 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Female to 75 Ohm RCA Plug Adapter PE9158

PE9158 REV 1.2 1
