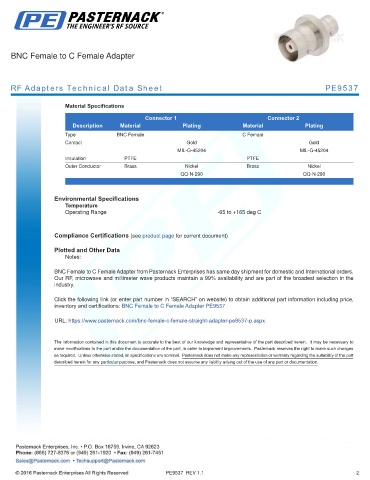

BNC Female to C Female Adapter

RF Adapters Technical Data Sheet PE9537

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female C Female
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

BNC Female to C Female Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female to C Female Adapter PE9537

URL: https://www.pasternack.com/bnc-female-c-female-straight-adapter-pe9537-p.aspx

PE9537 REV 1.1 2
