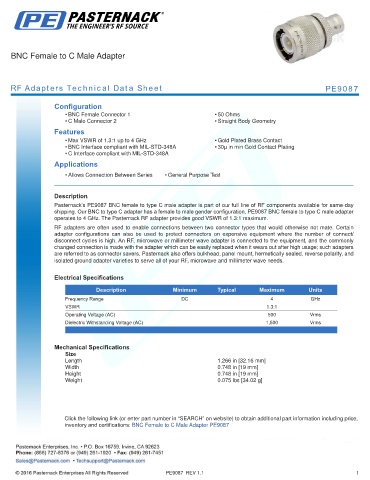

BNC Female to C Male Adapter

RF Adapters Technical Data Sheet PE9087

Configuration
• BNC Female Connector 1 • 50 Ohms
• C Male Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.3:1 up to 4 GHz • Gold Plated Brass Contact
• BNC Interface compliant with MIL-STD-348A • 30µ in min Gold Contact Plating
• C Interface compliant with MIL-STD-348A
Applications
• Allows Connection Between Series • General Purpose Test

.
Description
Pasternack’s PE9087 BNC female to type C male adapter is part of our full line of RF components available for same-day
shipping. Our BNC to type C adapter has a female to male gender configuration. PE9087 BNC female to type C male adapter
operates to 4 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
. .

Mechanical Specifications
Size
Length 1.266 in [32.16 mm]
Width 0.748 in [19 mm]
Height 0.748 in [19 mm]
Weight 0.075 lbs [34.02 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Female to C Male Adapter PE9087

PE9087 REV 1.1 1
