50 Ohm BNC Male to 75 Ohm SMC Jack Adapter

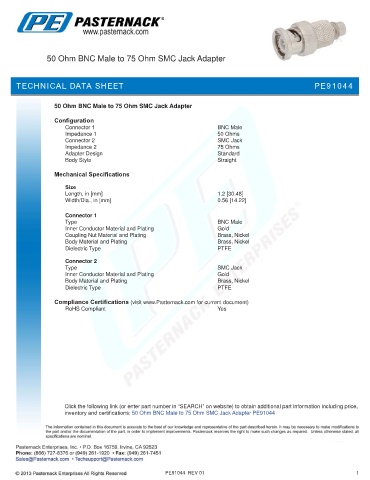

TECHNICAL DATA SHEET PE91044
50 Ohm BNC Male to 75 Ohm SMC Jack Adapter
Configuration
Connector 1 BNC Male
Impedance 1 50 Ohms
Connector 2 SMC Jack
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight
Mechanical Specifications
Size
Length, in [mm] 1.2 [30.48]
Width/Dia., in [mm] 0.56 [14.22]
.
Connector 1
Type BNC Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Connector 2
Type SMC Jack
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm SMC Jack Adapter PE91044
PE91044 REV 01 1
