50 Ohm BNC Male to 75 Ohm SMC Plug Adapter

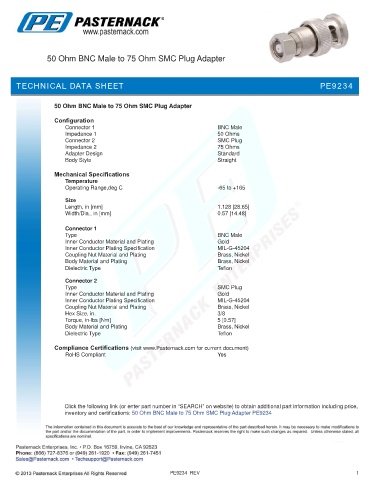

TECHNICAL DATA SHEET PE9234
50 Ohm BNC Male to 75 Ohm SMC Plug Adapter
Configuration
Connector 1 BNC Male
Impedance 1 50 Ohms
Connector 2 SMC Plug
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight
Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.128 [28.65]
Width/Dia., in [mm] 0.57 [14.48]
.
Connector 1
Type BNC Male
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type SMC Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 3/8
Torque, in-lbs [Nm] 5 [0.57]
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm SMC Plug Adapter PE9234
PE9234 REV 1
