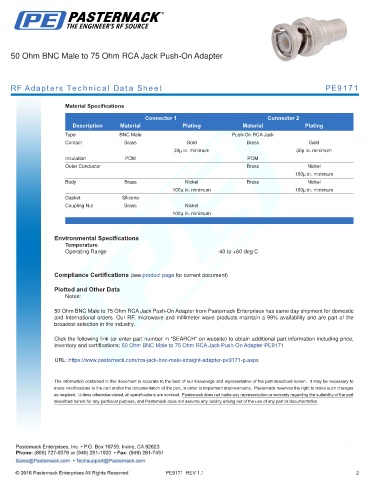

50 Ohm BNC Male to 75 Ohm RCA Jack Push-On Adapter

RF Adapters Technical Data Sheet PE9171

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male Push-On RCA Jack
Contact Brass Gold Brass Gold
30µ in. minimum 30µ in. minimum
Insulation POM POM
Outer Conductor Brass Nickel
100µ in. minimum
Body Brass Nickel Brass Nickel
100µ in. minimum 100µ in. minimum
Gasket Silicone
Coupling Nut Brass Nickel
100µ in. minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

50 Ohm BNC Male to 75 Ohm RCA Jack Push-On Adapter from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm RCA Jack Push-On Adapter PE9171

URL: https://www.pasternack.com/rca-jack-bnc-male-straight-adapter-pe9171-p.aspx

PE9171 REV 1.1 2
