50 Ohm BNC Male to 75 Ohm SMB Plug Adapter

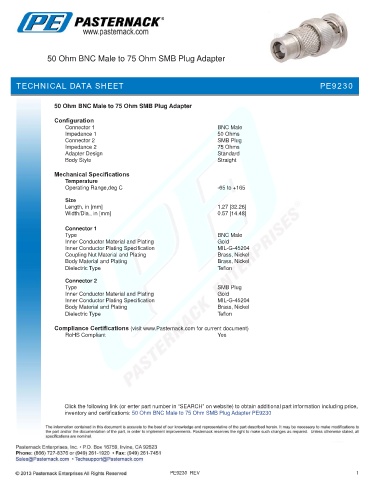

TECHNICAL DATA SHEET PE9230

50 Ohm BNC Male to 75 Ohm SMB Plug Adapter

Configuration
Connector 1 BNC Male
Impedance 1 50 Ohms
Connector 2 SMB Plug
Impedance 2 75 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications
Temperature
Operating Range,deg C -65 to +165
Size
Length, in [mm] 1.27 [32.26]
Width/Dia., in [mm] 0.57 [14.48]
.
Connector 1
Type BNC Male
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Connector 2
Type SMB Plug
Inner Conductor Material and Plating Gold
Inner Conductor Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm SMB Plug Adapter PE9230

PE9230 REV 1
