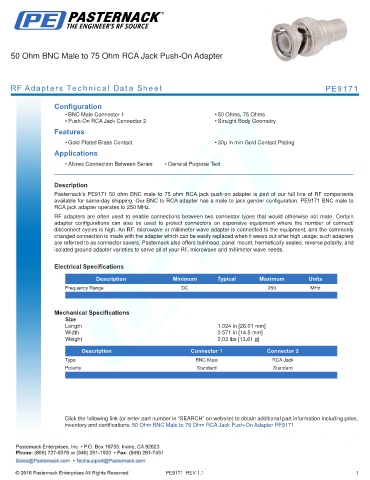

50 Ohm BNC Male to 75 Ohm RCA Jack Push-On Adapter

RF Adapters Technical Data Sheet PE9171

Configuration
• BNC Male Connector 1 • 50 Ohms, 75 Ohms
• Push-On RCA Jack Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact • 30µ in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9171 50 ohm BNC male to 75 ohm RCA jack push-on adapter is part of our full line of RF components
available for same-day shipping. Our BNC to RCA adapter has a male to jack gender configuration. PE9171 BNC male to
RCA jack adapter operates to 250 MHz.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 250 MHz
. .

Mechanical Specifications
Size
Length 1.024 in [26.01 mm]
Width 0.571 in [14.5 mm]
Weight 0.03 lbs [13.61 g]
.
Description Connector 1 Connector 2
Type BNC Male RCA Jack
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm RCA Jack Push-On Adapter PE9171

PE9171 REV 1.1 1
