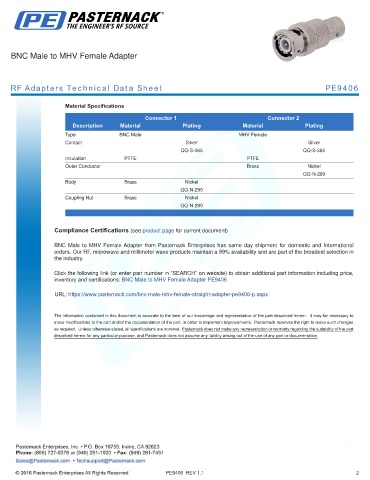

BNC Male to MHV Female Adapter

RF Adapters Technical Data Sheet PE9406

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male MHV Female
Contact Silver Silver
QQ-S-365 QQ-S-365
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Compliance Certifications (see product page for current document)

BNC Male to MHV Female Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in
the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to MHV Female Adapter PE9406

URL: https://www.pasternack.com/bnc-male-mhv-female-straight-adapter-pe9406-p.aspx

PE9406 REV 1.1 2
