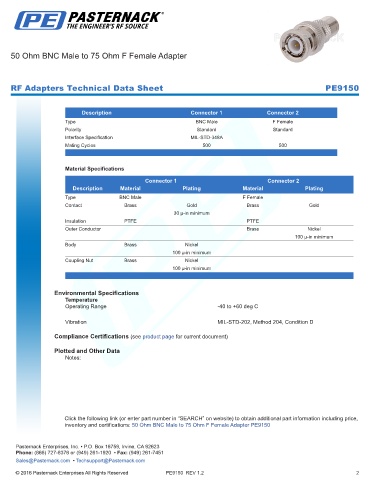

50 Ohm BNC Male to 75 Ohm F Female Adapter

RF Adapters Technical Data Sheet PE9150

.
Description Connector 1 Connector 2
Type BNC Male F Female
Polarity Standard Standard
Interface Specification MIL-STD-348A
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male F Female
Contact Brass Gold Brass Gold
30 µ-in minimum
Insulation PTFE PTFE
Outer Conductor Brass Nickel
100 µ-in minimum
Body Brass Nickel
100 µ-in minimum
Coupling Nut Brass Nickel
100 µ-in minimum
. .

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C
.
Vibration MIL-STD-202, Method 204, Condition D

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm F Female Adapter PE9150
