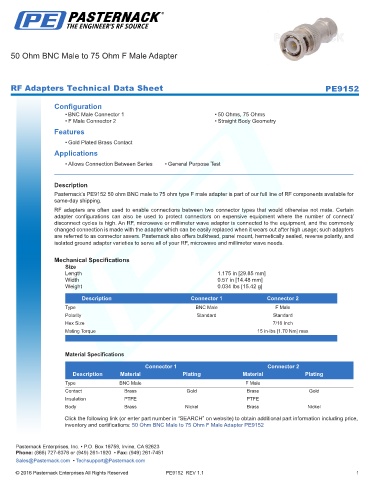

50 Ohm BNC Male to 75 Ohm F Male Adapter

RF Adapters Technical Data Sheet PE9152

Configuration
• BNC Male Connector 1 • 50 Ohms, 75 Ohms
• F Male Connector 2 • Straight Body Geometry
Features

• Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9152 50 ohm BNC male to 75 ohm type F male adapter is part of our full line of RF components available for
same-day shipping.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.175 in [29.85 mm]
Width 0.57 in [14.48 mm]
Weight 0.034 lbs [15.42 g]
.
Description Connector 1 Connector 2
Type BNC Male F Male
Polarity Standard Standard
Hex Size 7/16 Inch
Mating Torque 15 in-lbs [1.70 Nm] max
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male F Male
Contact Brass Gold Brass Gold
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm F Male Adapter PE9152

PE9152 REV 1.1 1
