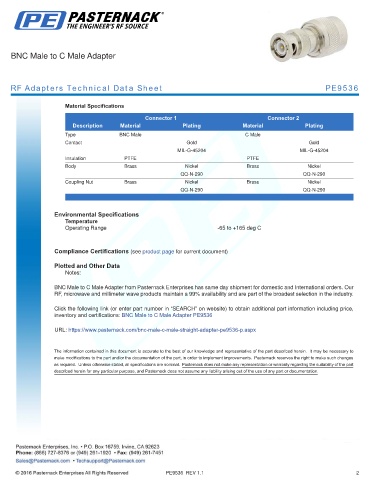

BNC Male to C Male Adapter
RF Adapters Technical Data Sheet PE9536
Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male C Male
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Body Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
Coupling Nut Brass Nickel Brass Nickel
QQ-N-290 QQ-N-290
. .
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
BNC Male to C Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: BNC Male to C Male Adapter PE9536
URL: https://www.pasternack.com/bnc-male-c-male-straight-adapter-pe9536-p.aspx
PE9536 REV 1.1 2
