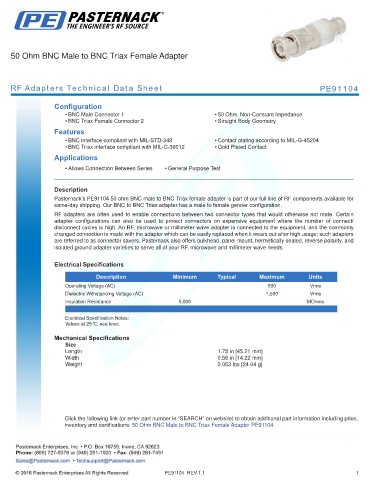

50 Ohm BNC Male to BNC Triax Female Adapter

RF Adapters Technical Data Sheet PE91104

Configuration
• BNC Male Connector 1 • 50 Ohm, Non-Constant Impedance
• BNC Triax Female Connector 2 • Straight Body Geometry
Features
• BNC interface compliant with MIL-STD-348 • Contact plating according to MIL-G-45204
• BNC Triax interface compliant with MIL-C-39012 • Gold Plated Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE91104 50 ohm BNC male to BNC Triax female adapter is part of our full line of RF components available for
same-day shipping. Our BNC to BNC Triax adapter has a male to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.78 in [45.21 mm]
Width 0.56 in [14.22 mm]
Weight 0.053 lbs [24.04 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to BNC Triax Female Adapter PE91104

PE91104 REV 1.1 1
