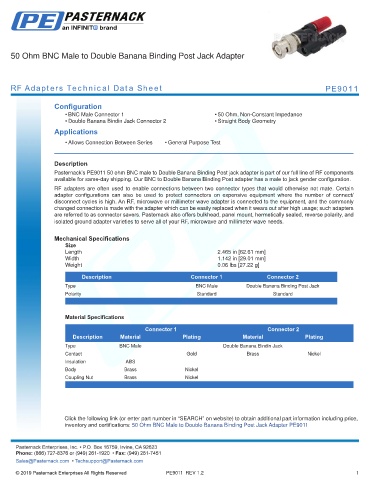

50 Ohm BNC Male to Double Banana Binding Post Jack Adapter

RF Adapters Technical Data Sheet PE9011

Configuration
• BNC Male Connector 1 • 50 Ohm, Non-Constant Impedance
• Double Banana Bindin Jack Connector 2 • Straight Body Geometry
Applications

• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9011 50 ohm BNC male to Double Banana Binding Post jack adapter is part of our full line of RF components
available for same-day shipping. Our BNC to Double Banana Binding Post adapter has a male to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.465 in [62.61 mm]
Width 1.142 in [29.01 mm]
Weight 0.06 lbs [27.22 g]
.
Description Connector 1 Connector 2
Type BNC Male Double Banana Binding Post Jack
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Male Double Banana Bindin Jack
Contact Gold Brass Nickel
Insulation ABS
Body Brass Nickel
Coupling Nut Brass Nickel
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to Double Banana Binding Post Jack Adapter PE9011
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE9011 REV 1.2 1
