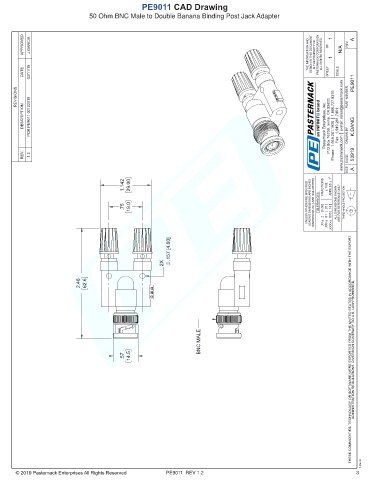

PE9011 CAD Drawing
50 Ohm BNC Male to Double Banana Binding Post Jack Adapter
APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A
DATE 03/11/19 SHEET OF SCALE PE9011
REVISIONS PART NUMBER
DESCRIPTION PCR PE9011 02122019 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG
REV. 1.2 CAGE 53919
SIZE A
1.142 29.00 FRACTIONS ± 1/32 ANGLES ± 1°
.75 19.0 UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
.2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=±
.157 [4.00]
2X
2.46 62.6
BNC MALE
THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.57 14.5
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
T-Rev.B
PE9011 REV 1.2 3
