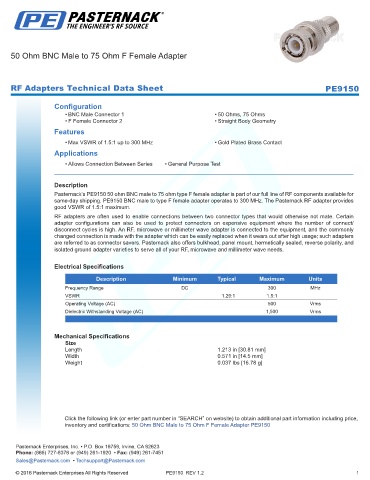

50 Ohm BNC Male to 75 Ohm F Female Adapter

RF Adapters Technical Data Sheet PE9150

Configuration
• BNC Male Connector 1 • 50 Ohms, 75 Ohms
• F Female Connector 2 • Straight Body Geometry
Features

• Max VSWR of 1.5:1 up to 300 MHz • Gold Plated Brass Contact
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9150 50 ohm BNC male to 75 ohm type F female adapter is part of our full line of RF components available for
same-day shipping. PE9150 BNC male to type F female adapter operates to 300 MHz. The Pasternack RF adapter provides
good VSWR of 1.5:1 maximum.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.29:1 1.5:1
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
. .

Mechanical Specifications
Size
Length 1.213 in [30.81 mm]
Width 0.571 in [14.5 mm]
Weight 0.037 lbs [16.78 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Male to 75 Ohm F Female Adapter PE9150

PE9150 REV 1.2 1
