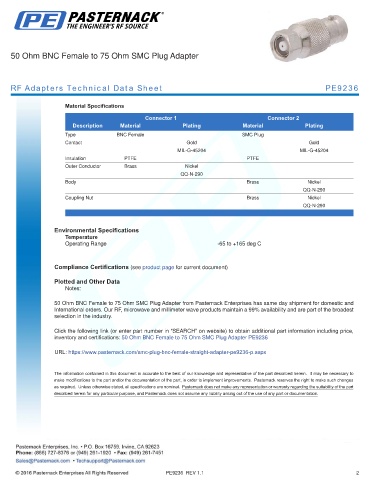

50 Ohm BNC Female to 75 Ohm SMC Plug Adapter

RF Adapters Technical Data Sheet PE9236

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type BNC Female SMC Plug
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

50 Ohm BNC Female to 75 Ohm SMC Plug Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 Ohm BNC Female to 75 Ohm SMC Plug Adapter PE9236

URL: https://www.pasternack.com/smc-plug-bnc-female-straight-adapter-pe9236-p.aspx

PE9236 REV 1.1 2
