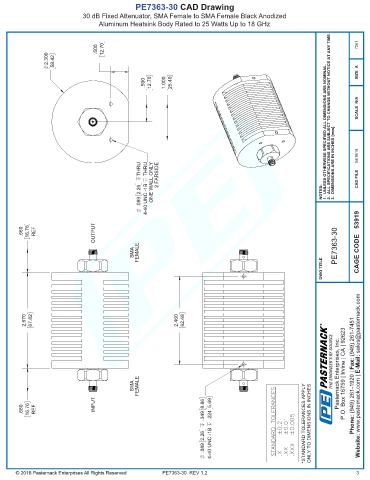

PE7363-30 CAD Drawing
30 dB Fixed Attenuator, SMA Female to SMA Female Black Anodized
Aluminum Heatsink Body Rated to 25 Watts Up to 18 GHz

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

.500 12.70 7361
2.300 58.42
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A
.500 12.70 1.000 25.40

SCALE N/A

THRU THRU 2 FARSIDE 3. DIMENSIONS ARE IN INCHES [mm]. 04/18/18

ONE WALL ONLY CAD FILE
2.26 NOTES:

.089 4-40 UNC -1B

.660 16.76 REF OUTPUT

SMA FEMALE PE7363-30 CAGE CODE 53919
DWG TITLE

2.670 67.82 2.460 62.48 R

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623

SMA FEMALE Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.660 16.76 REF INPUT 8.86 5.69
.349 .224 STANDARD TOLERANCES
.XXX ±0.005
.XX ±0.01
.X ±0.2
*STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
2.26
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
.089 4-40 UNC -1B

PE7363-30 REV 1.2 3
