6 dB Fixed Attenuator, SMA Female to SMA
Female Black Anodized Aluminum Heatsink
Body Rated to 25 Watts Up to 18 GHz

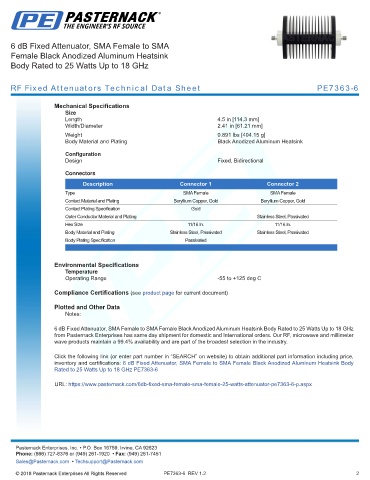

RF Fixed Attenuators Technical Data Sheet PE7363-6

Mechanical Specifications
Size
Length 4.5 in [114.3 mm]
Width/Diameter 2.41 in [61.21 mm]
.
Weight 0.891 lbs [404.15 g]
Body Material and Plating Black Anodized Aluminum Heatsink

Configuration
Design Fixed, Bidirectional

Connectors
Description Connector 1 Connector 2
Type SMA Female SMA Female
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Contact Plating Specification Gold
Outer Conductor Material and Plating Stainless Steel, Passivated
Hex Size 11/16 In. 11/16 In.
Body Material and Plating Stainless Steel, Passivated Stainless Steel, Passivated
Body Plating Specification Passivated
.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

6 dB Fixed Attenuator, SMA Female to SMA Female Black Anodized Aluminum Heatsink Body Rated to 25 Watts Up to 18 GHz
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB Fixed Attenuator, SMA Female to SMA Female Black Anodized Aluminum Heatsink Body
Rated to 25 Watts Up to 18 GHz PE7363-6

URL: https://www.pasternack.com/6db-fixed-sma-female-sma-female-25-watts-attenuator-pe7363-6-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE7363-6 REV 1.2 2
