3 dB Fixed Attenuator, N Male to N Female
Unidirectional Black Anodized Aluminum Heatsink
Body Rated to 50 Watts Up to 3 GHz

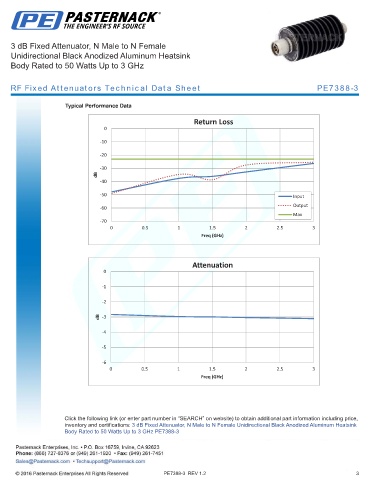

RF Fixed Attenuators Technical Data Sheet PE7388-3
Typical Performance Data
Return Loss
0
-10
-20
-30
dB
-40
-50 Input
-60 Output
Max
-70
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
Attenuation
0
-1
-2
dB -3
-4
-5
-6
0 0.5 1 1.5 2 2.5 3
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, N Male to N Female Unidirectional Black Anodized Aluminum Heatsink
Body Rated to 50 Watts Up to 3 GHz PE7388-3
PE7388-3 REV 1.2 3
