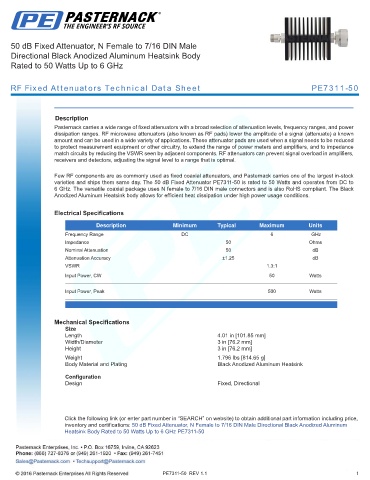

50 dB Fixed Attenuator, N Female to 7/16 DIN Male
Directional Black Anodized Aluminum Heatsink Body
Rated to 50 Watts Up to 6 GHz

RF Fixed Attenuators Technical Data Sheet PE7311-50

.
Description
Pasternack carries a wide range of fixed attenuators with a broad selection of attenuation levels, frequency ranges, and power
dissipation ranges. RF microwave attenuators (also known as RF pads) lower the amplitude of a signal (attenuate) a known
amount and can be used in a wide variety of applications. These attenuator pads are used when a signal needs to be reduced
to protect measurement equipment or other circuitry, to extend the range of power meters and amplifiers, and to impedance
match circuits by reducing the VSWR seen by adjacent components. RF attenuators can prevent signal overload in amplifiers,
receivers and detectors, adjusting the signal level to a range that is optimal.

Few RF components are as commonly used as fixed coaxial attenuators, and Pasternack carries one of the largest in-stock
varieties and ships them same day. The 50 dB Fixed Attenuator PE7311-50 is rated to 50 Watts and operates from DC to
6 GHz. The versatile coaxial package uses N female to 7/16 DIN male connectors and is also RoHS compliant. The Black
Anodized Aluminum Heatsink body allows for efficient heat dissipation under high power usage conditions.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Impedance 50 Ohms
Nominal Attenuation 50 dB
Attenuation Accuracy ±1.25 dB
VSWR 1.3:1
Input Power, CW 50 Watts

Input Power, Peak 500 Watts

.

Mechanical Specifications
Size
Length 4.01 in [101.85 mm]
Width/Diameter 3 in [76.2 mm]
Height 3 in [76.2 mm]
.
Weight 1.796 lbs [814.65 g]
Body Material and Plating Black Anodized Aluminum Heatsink

Configuration
Design Fixed, Directional

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 50 dB Fixed Attenuator, N Female to 7/16 DIN Male Directional Black Anodized Aluminum
Heatsink Body Rated to 50 Watts Up to 6 GHz PE7311-50
