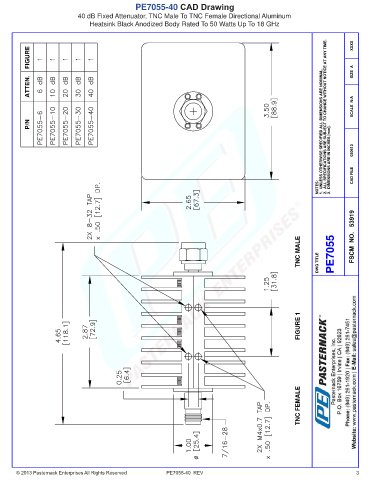

PE7055-40 CAD Drawing
40 dB Fixed Attenuator, TNC Male To TNC Female Directional Aluminum
Heatsink Black Anodized Body Rated To 50 Watts Up To 18 GHz

XXXX
FIGURE SIZE A

ATTEN.

SCALE N/A

P/N 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm]. 030613

NOTES: CAD FILE

TNC MALE DWG TITLE PE7055 FSCM NO. 53919

FIGURE 1

TNC FEMALE

© 2013 Pasternack Enterprises All Rights Reserved PE7055-40 REV 3
