40 dB Fixed Attenuator, TNC Female To TNC Male
Directional Rated To 50 Watts Up To 18 GHz

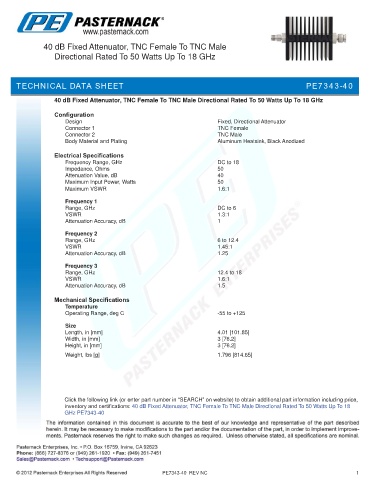

TECHNICAL DATA SHEET PE7343-40

40 dB Fixed Attenuator, TNC Female To TNC Male Directional Rated To 50 Watts Up To 18 GHz

Configuration
Design Fixed, Directional Attenuator
Connector 1 TNC Female
Connector 2 TNC Male
Body Material and Plating Aluminum Heatsink, Black Anodized

Electrical Specifications
Frequency Range, GHz DC to 18
Impedance, Ohms 50
Attenuation Value, dB 40
Maximum Input Power, Watts 50
Maximum VSWR 1.6:1

Frequency 1
Range, GHz DC to 6
VSWR 1.3:1
Attenuation Accuracy, dB 1
Frequency 2
Range, GHz 6 to 12.4
VSWR 1.45:1
Attenuation Accuracy, dB 1.25
Frequency 3
Range, GHz 12.4 to 18
VSWR 1.6:1
Attenuation Accuracy, dB 1.5

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125
Size
Length, in [mm] 4.01 [101.85]
Width, in [mm] 3 [76.2]
Height, in [mm] 3 [76.2]
.
Weight, lbs [g] 1.796 [814.65]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 40 dB Fixed Attenuator, TNC Female To TNC Male Directional Rated To 50 Watts Up To 18
GHz PE7343-40

PE7343-40 REV NC 1
