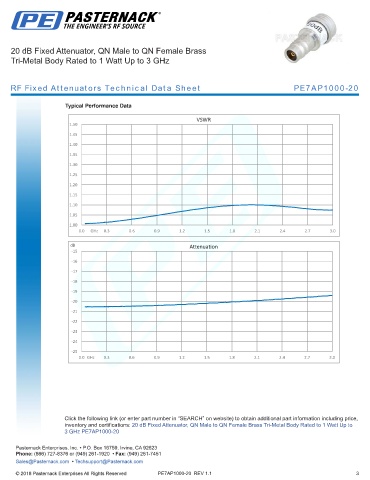

20 dB Fixed Attenuator, QN Male to QN Female Brass
Tri-Metal Body Rated to 1 Watt Up to 3 GHz
RF Fixed Attenuators Technical Data Sheet PE7AP1000-20
Typical Performance Data
VSWR
1.50
1.45
1.40
1.35
1.30
1.25
1.20
1.15
1.10
1.05
1.00
0.0 GHz 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
dB Attenuation
-15
-16
-17
-18
-19
-20
-21
-22
-23
-24
-25
0.0 GHz 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
