0 to 42 dB Toggle Step Attenuator, 75 Ohm BNC
Female To 75 Ohm BNC Female Up To 1000 MHz

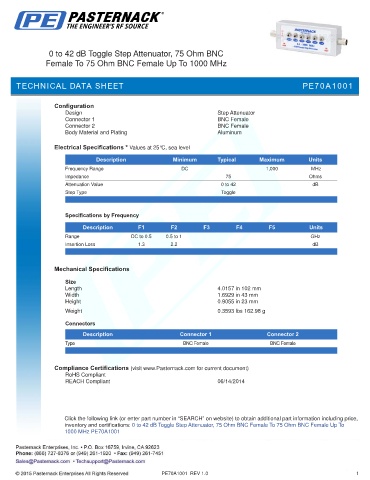

TECHNICAL DATA SHEET PE70A1001

Configuration
Design Step Attenuator
Connector 1 BNC Female
Connector 2 BNC Female
Body Material and Plating Aluminum

Electrical Specifications * Values at 25°C, sea level
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Impedance 75 Ohms
Attenuation Value 0 to 42 dB
Step Type Toggle
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Range DC to 0.5 0.5 to 1 GHz
Insertion Loss 1.3 2.2 dB
.

Mechanical Specifications
Size
Length 4.0157 in 102 mm
Width 1.6929 in 43 mm
Height 0.9055 in 23 mm
.
Weight 0.3593 lbs 162.98 g
Connectors
Description Connector 1 Connector 2
Type BNC Female BNC Female
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/14/2014

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 42 dB Toggle Step Attenuator, 75 Ohm BNC Female To 75 Ohm BNC Female Up To
1000 MHz PE70A1001

PE70A1001 REV 1.0 1
