0 to 71 dB Toggle Step Attenuator, 75 Ohm F Female to 75 Ohm
F Female Rated to 1 Watt From 0.3 MHz to 1,000 MHz

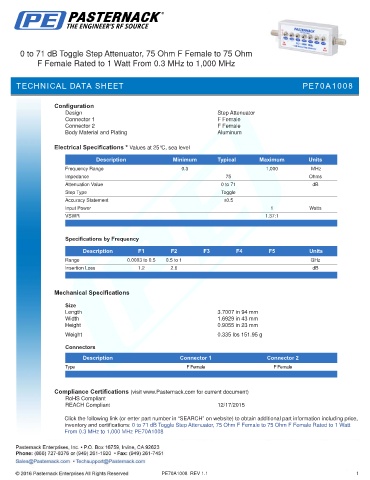

TECHNICAL DATA SHEET PE70A1008

Configuration
Design Step Attenuator
Connector 1 F Female
Connector 2 F Female
Body Material and Plating Aluminum

Electrical Specifications * Values at 25°C, sea level
Description Minimum Typical Maximum Units
Frequency Range 0.3 1,000 MHz
Impedance 75 Ohms
Attenuation Value 0 to 71 dB
Step Type Toggle
Accuracy Statement ±0.5
Input Power 1 Watts
VSWR 1.37:1
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Range 0.0003 to 0.5 0.5 to 1 GHz
Insertion Loss 1.2 2.6 dB
.

Mechanical Specifications
Size
Length 3.7007 in 94 mm
Width 1.6929 in 43 mm
Height 0.9055 in 23 mm
.
Weight 0.335 lbs 151.95 g
Connectors
Description Connector 1 Connector 2
Type F Female F Female
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 71 dB Toggle Step Attenuator, 75 Ohm F Female to 75 Ohm F Female Rated to 1 Watt
From 0.3 MHz to 1,000 MHz PE70A1008

PE70A1008 REV 1.1 1
