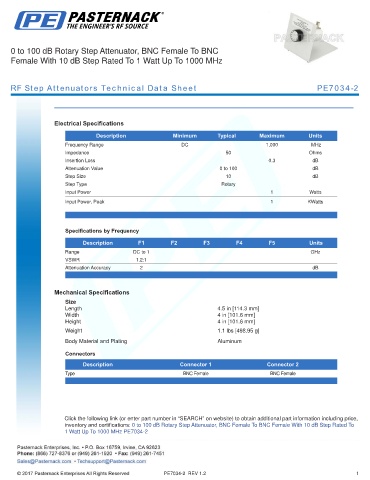

0 to 100 dB Rotary Step Attenuator, BNC Female To BNC
Female With 10 dB Step Rated To 1 Watt Up To 1000 MHz

RF Step Attenuators Technical Data Sheet PE7034-2

.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Impedance 50 Ohms
Insertion Loss 0.3 dB
Attenuation Value 0 to 100 dB
Step Size 10 dB
Step Type Rotary
Input Power 1 Watts
Input Power, Peak 1 KWatts

.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Range DC to 1 GHz
VSWR 1.2:1
Attenuation Accuracy 2 dB
.

Mechanical Specifications
Size
Length 4.5 in [114.3 mm]
Width 4 in [101.6 mm]
Height 4 in [101.6 mm]
.
Weight 1.1 lbs [498.95 g]
.
Body Material and Plating Aluminum
Connectors
Description Connector 1 Connector 2
Type BNC Female BNC Female
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 100 dB Rotary Step Attenuator, BNC Female To BNC Female With 10 dB Step Rated To
1 Watt Up To 1000 MHz PE7034-2

PE7034-2 REV 1.2 1
