0 to 1 dB Rotary Step Attenuator, BNC Female To BNC
Female With 0.1 dB Step Rated To 2 Watts Up To 2 GHz

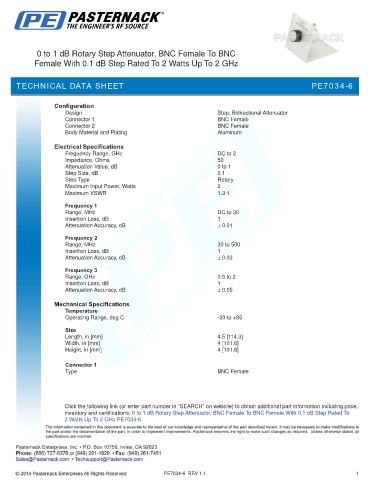

TECHNICAL DATA SHEET PE7034-6

Configuration
Design Step, Bidirectional Attenuator
Connector 1 BNC Female
Connector 2 BNC Female
Body Material and Plating Aluminum

Electrical Specifications
Frequency Range, GHz DC to 2
Impedance, Ohms 50
Attenuation Value, dB 0 to 1
Step Size, dB 0.1
Step Type Rotary
Maximum Input Power, Watts 2
Maximum VSWR 1.3:1

Frequency 1
Range, MHz DC to 30
Insertion Loss, dB 1
Attenuation Accuracy, dB ± 0.01
Frequency 2
Range, MHz 30 to 500
Insertion Loss, dB 1
Attenuation Accuracy, dB ± 0.03

Frequency 3
Range, GHz 0.5 to 2
Insertion Loss, dB 1
Attenuation Accuracy, dB ± 0.05

Mechanical Specifications
Temperature
Operating Range, deg C -20 to +85
Size
Length, in [mm] 4.5 [114.3]
Width, in [mm] 4 [101.6]
Height, in [mm] 4 [101.6]
.
Connector 1
Type BNC Female

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 1 dB Rotary Step Attenuator, BNC Female To BNC Female With 0.1 dB Step Rated To
2 Watts Up To 2 GHz PE7034-6

PE7034-6 REV 1.1 1
