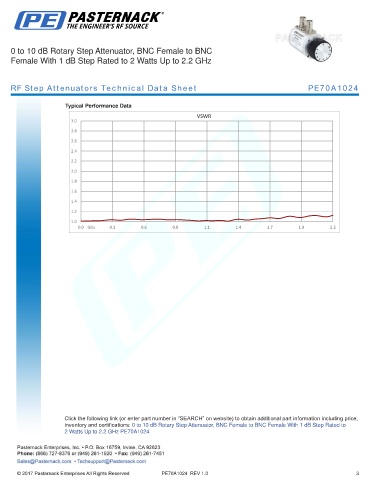

0 to 10 dB Rotary Step Attenuator, BNC Female to BNC
Female With 1 dB Step Rated to 2 Watts Up to 2.2 GHz

RF Step Attenuators Technical Data Sheet PE70A1024

Typical Performance Data
VSWR
3.0
2.8
2.6
2.4

2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.0 GHz 0.3 0.6 0.8 1.1 1.4 1.7 1.9 2.2

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 10 dB Rotary Step Attenuator, BNC Female to BNC Female With 1 dB Step Rated to
2 Watts Up to 2.2 GHz PE70A1024

PE70A1024 REV 1.0 3
