0 to 70 dB Rotary Step Attenuator, BNC Female to BNC
Female With 10 dB Step Rated to 2 Watts Up to 2.2 GHz

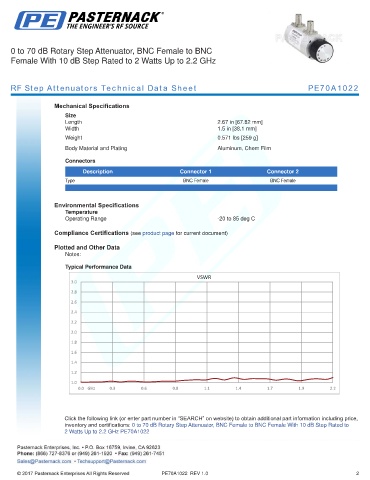

RF Step Attenuators Technical Data Sheet PE70A1022

Mechanical Specifications
Size
Length 2.67 in [67.82 mm]
Width 1.5 in [38.1 mm]
.
Weight 0.571 lbs [259 g]
.
Body Material and Plating Aluminum, Chem Film
Connectors

Description Connector 1 Connector 2
Type BNC Female BNC Female
.

Environmental Specifications
Temperature
Operating Range -20 to 85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
Typical Performance Data
VSWR
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.0 GHz 0.3 0.6 0.8 1.1 1.4 1.7 1.9 2.2

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 70 dB Rotary Step Attenuator, BNC Female to BNC Female With 10 dB Step Rated to
2 Watts Up to 2.2 GHz PE70A1022
