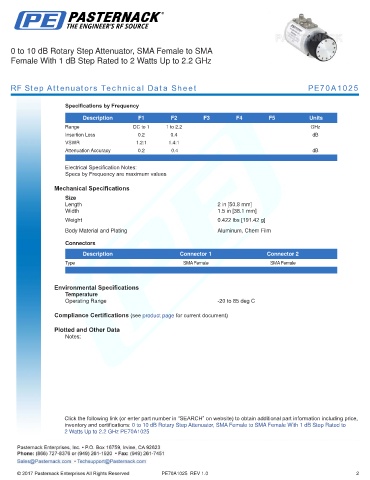

0 to 10 dB Rotary Step Attenuator, SMA Female to SMA
Female With 1 dB Step Rated to 2 Watts Up to 2.2 GHz
RF Step Attenuators Technical Data Sheet PE70A1025
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Range DC to 1 1 to 2.2 GHz
Insertion Loss 0.2 0.4 dB
VSWR 1.2:1 1.4:1
Attenuation Accuracy 0.2 0.4 dB
.
Electrical Specification Notes:
Specs by Frequency are maximum values
Mechanical Specifications
Size
Length 2 in [50.8 mm]
Width 1.5 in [38.1 mm]
.
Weight 0.422 lbs [191.42 g]
.
Body Material and Plating Aluminum, Chem Film
Connectors
Description Connector 1 Connector 2
Type SMA Female SMA Female
.
Environmental Specifications
Temperature
Operating Range -20 to 85 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 10 dB Rotary Step Attenuator, SMA Female to SMA Female With 1 dB Step Rated to
2 Watts Up to 2.2 GHz PE70A1025
PE70A1025 REV 1.0 2
