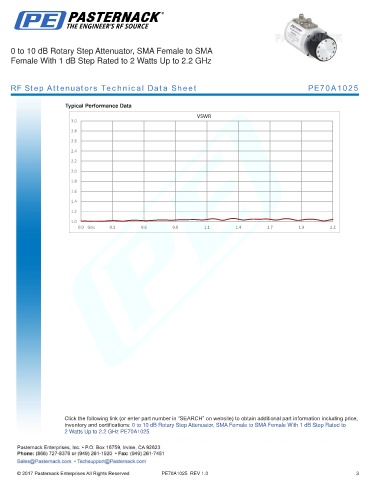

0 to 10 dB Rotary Step Attenuator, SMA Female to SMA
Female With 1 dB Step Rated to 2 Watts Up to 2.2 GHz
RF Step Attenuators Technical Data Sheet PE70A1025
Typical Performance Data
VSWR
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.0 GHz 0.3 0.6 0.8 1.1 1.4 1.7 1.9 2.2
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 10 dB Rotary Step Attenuator, SMA Female to SMA Female With 1 dB Step Rated to
2 Watts Up to 2.2 GHz PE70A1025
PE70A1025 REV 1.0 3
