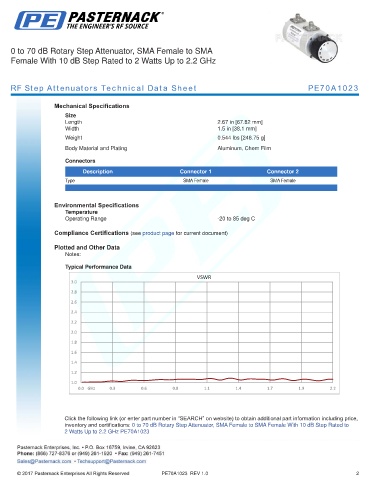

0 to 70 dB Rotary Step Attenuator, SMA Female to SMA
Female With 10 dB Step Rated to 2 Watts Up to 2.2 GHz

RF Step Attenuators Technical Data Sheet PE70A1023

Mechanical Specifications
Size
Length 2.67 in [67.82 mm]
Width 1.5 in [38.1 mm]
.
Weight 0.544 lbs [246.75 g]
.
Body Material and Plating Aluminum, Chem Film
Connectors

Description Connector 1 Connector 2
Type SMA Female SMA Female
.

Environmental Specifications
Temperature
Operating Range -20 to 85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
Typical Performance Data
VSWR
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.0 GHz 0.3 0.6 0.8 1.1 1.4 1.7 1.9 2.2

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 70 dB Rotary Step Attenuator, SMA Female to SMA Female With 10 dB Step Rated to
2 Watts Up to 2.2 GHz PE70A1023

PE70A1023 REV 1.0 2
