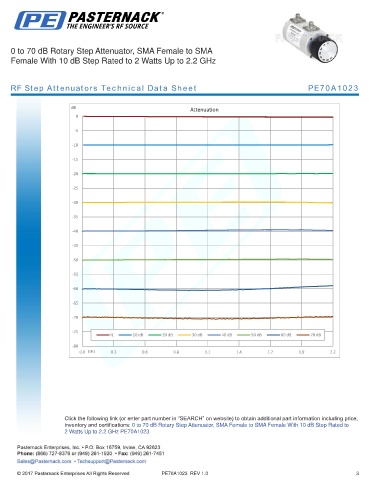

0 to 70 dB Rotary Step Attenuator, SMA Female to SMA
Female With 10 dB Step Rated to 2 Watts Up to 2.2 GHz
RF Step Attenuators Technical Data Sheet PE70A1023
dB Attenuation
0
-5
-10
-15
-20
-25
-30
-35
-40
-45
-50
-55
-60
-65
-70
-75
IL 10 dB 20 dB 30 dB 40 dB 50 dB 60 dB 70 dB
-80
0.0 GHz 0.3 0.6 0.8 1.1 1.4 1.7 1.9 2.2
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 0 to 70 dB Rotary Step Attenuator, SMA Female to SMA Female With 10 dB Step Rated to
2 Watts Up to 2.2 GHz PE70A1023
PE70A1023 REV 1.0 3
