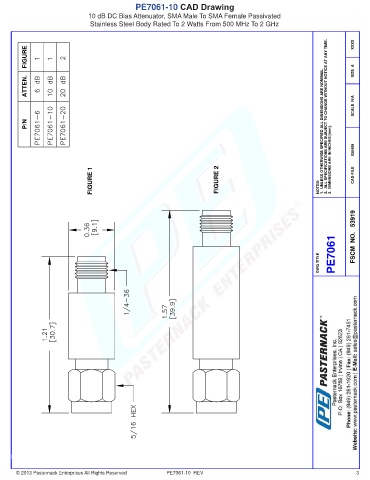

PE7061-10 CAD Drawing
10 dB DC Bias Attenuator, SMA Male To SMA Female Passivated
Stainless Steel Body Rated To 2 Watts From 500 MHz To 2 GHz
XXXX
FIGURE SIZE A
ATTEN.
SCALE N/A
P/N 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm]. 030409
FIGURE 1 FIGURE 2 NOTES: CAD FILE
DWG TITLE PE7061 FSCM NO. 53919
© 2013 Pasternack Enterprises All Rights Reserved PE7061-10 REV 3
