6 dB DC Bias Attenuator, TNC Male To TNC Female Passivated
Stainless Steel Body Rated To 2 Watts From 500 MHz To 2 GHz

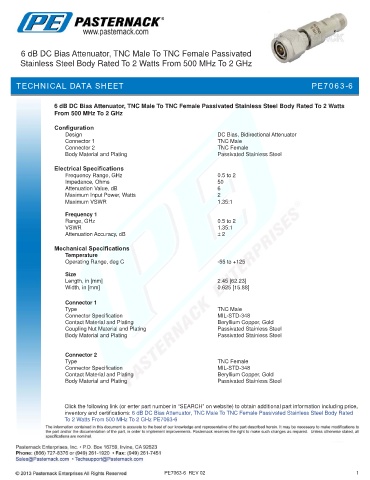

TECHNICAL DATA SHEET PE7063-6

6 dB DC Bias Attenuator, TNC Male To TNC Female Passivated Stainless Steel Body Rated To 2 Watts
From 500 MHz To 2 GHz

Configuration
Design DC Bias, Bidirectional Attenuator
Connector 1 TNC Male
Connector 2 TNC Female
Body Material and Plating Passivated Stainless Steel

Electrical Specifications
Frequency Range, GHz 0.5 to 2
Impedance, Ohms 50
Attenuation Value, dB 6
Maximum Input Power, Watts 2
Maximum VSWR 1.35:1

Frequency 1
Range, GHz 0.5 to 2
VSWR 1.35:1
Attenuation Accuracy, dB ± 2
Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125

Size
Length, in [mm] 2.45 [62.23]
Width, in [mm] 0.625 [15.88]
.
Connector 1
Type TNC Male
Connector Specification MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold
Coupling Nut Material and Plating Passivated Stainless Steel
Body Material and Plating Passivated Stainless Steel

Connector 2
Type TNC Female
Connector Specification MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold
Body Material and Plating Passivated Stainless Steel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 dB DC Bias Attenuator, TNC Male To TNC Female Passivated Stainless Steel Body Rated
To 2 Watts From 500 MHz To 2 GHz PE7063-6

PE7063-6 REV 02 1
