20 dB DC Bias Attenuator, 75 F Male To 75 F Female Brass
Nickel Body Rated To 2 Watts From 500 MHz To 2 GHz

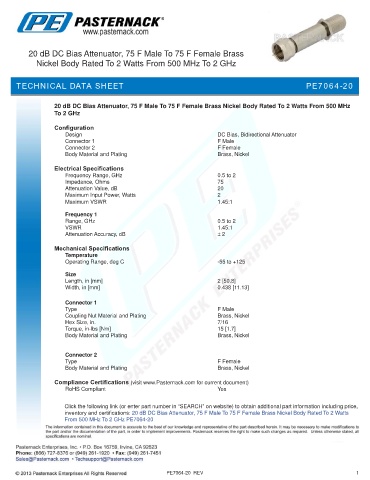

TECHNICAL DATA SHEET PE7064-20
20 dB DC Bias Attenuator, 75 F Male To 75 F Female Brass Nickel Body Rated To 2 Watts From 500 MHz
To 2 GHz
Configuration
Design DC Bias, Bidirectional Attenuator
Connector 1 F Male
Connector 2 F Female
Body Material and Plating Brass, Nickel
Electrical Specifications
Frequency Range, GHz 0.5 to 2
Impedance, Ohms 75
Attenuation Value, dB 20
Maximum Input Power, Watts 2
Maximum VSWR 1.45:1
Frequency 1
Range, GHz 0.5 to 2
VSWR 1.45:1
Attenuation Accuracy, dB ± 2
Mechanical Specifications
Temperature
Operating Range, deg C -55 to +125
Size
Length, in [mm] 2 [50.8]
Width, in [mm] 0.438 [11.13]
.
Connector 1
Type F Male
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 7/16
Torque, in-lbs [Nm] 15 [1.7]
Body Material and Plating Brass, Nickel
Connector 2
Type F Female
Body Material and Plating Brass, Nickel
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 20 dB DC Bias Attenuator, 75 F Male To 75 F Female Brass Nickel Body Rated To 2 Watts
From 500 MHz To 2 GHz PE7064-20
PE7064-20 REV 1
