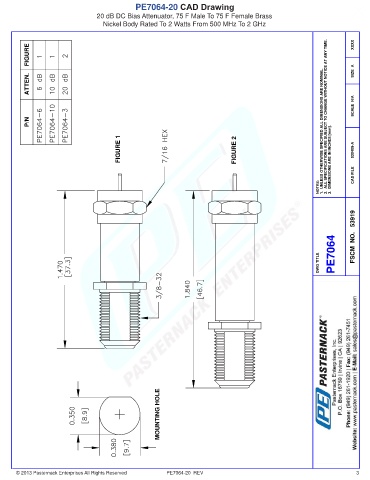

PE7064-20 CAD Drawing
20 dB DC Bias Attenuator, 75 F Male To 75 F Female Brass
Nickel Body Rated To 2 Watts From 500 MHz To 2 GHz

FIGURE XXXX

ATTEN. SIZE A

SCALE N/A

P/N 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

FIGURE 1 FIGURE 2 3. DIMENSIONS ARE IN INCHES [mm]. 030409-A

NOTES: CAD FILE

DWG TITLE PE7064 FSCM NO. 53919

MOUNTING HOLE

© 2013 Pasternack Enterprises All Rights Reserved PE7064-20 REV 3
