0 to 90 dB Dial Continuously Variable Attenuator, SMA
Female To SMA Female Rated To 5 Watts Up To 4 GHz

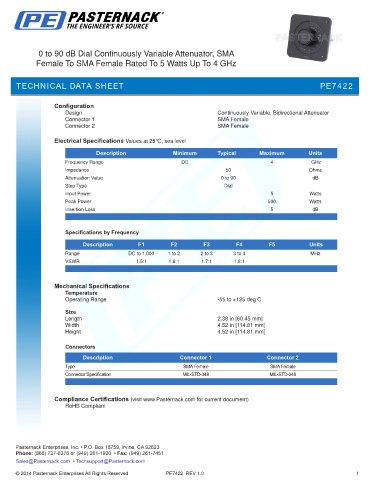

TECHNICAL DATA SHEET PE7422

Configuration
Design Continuously Variable, Bidirectional Attenuator
Connector 1 SMA Female
Connector 2 SMA Female

Electrical Specifications Values at 25°C, sea level

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Impedance 50 Ohms
Attenuation Value 0 to 90 dB
Step Type Dial
Input Power 5 Watts
Peak Power 500 Watts
Insertion Loss 5 dB
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Range DC to 1,000 1 to 2 2 to 3 3 to 4 MHz
VSWR 1.5:1 1.6:1 1.7:1 1.8:1
.

Mechanical Specifications
Temperature
Operating Range -55 to +125 deg C

Size
Length 2.38 in [60.45 mm]
Width 4.52 in [114.81 mm]
Height 4.52 in [114.81 mm]
.
Connectors
Description Connector 1 Connector 2
Type SMA Female SMA Female
Connector Specification MIL-STD-348 MIL-STD-348
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

PE7422 REV 1.0 1
